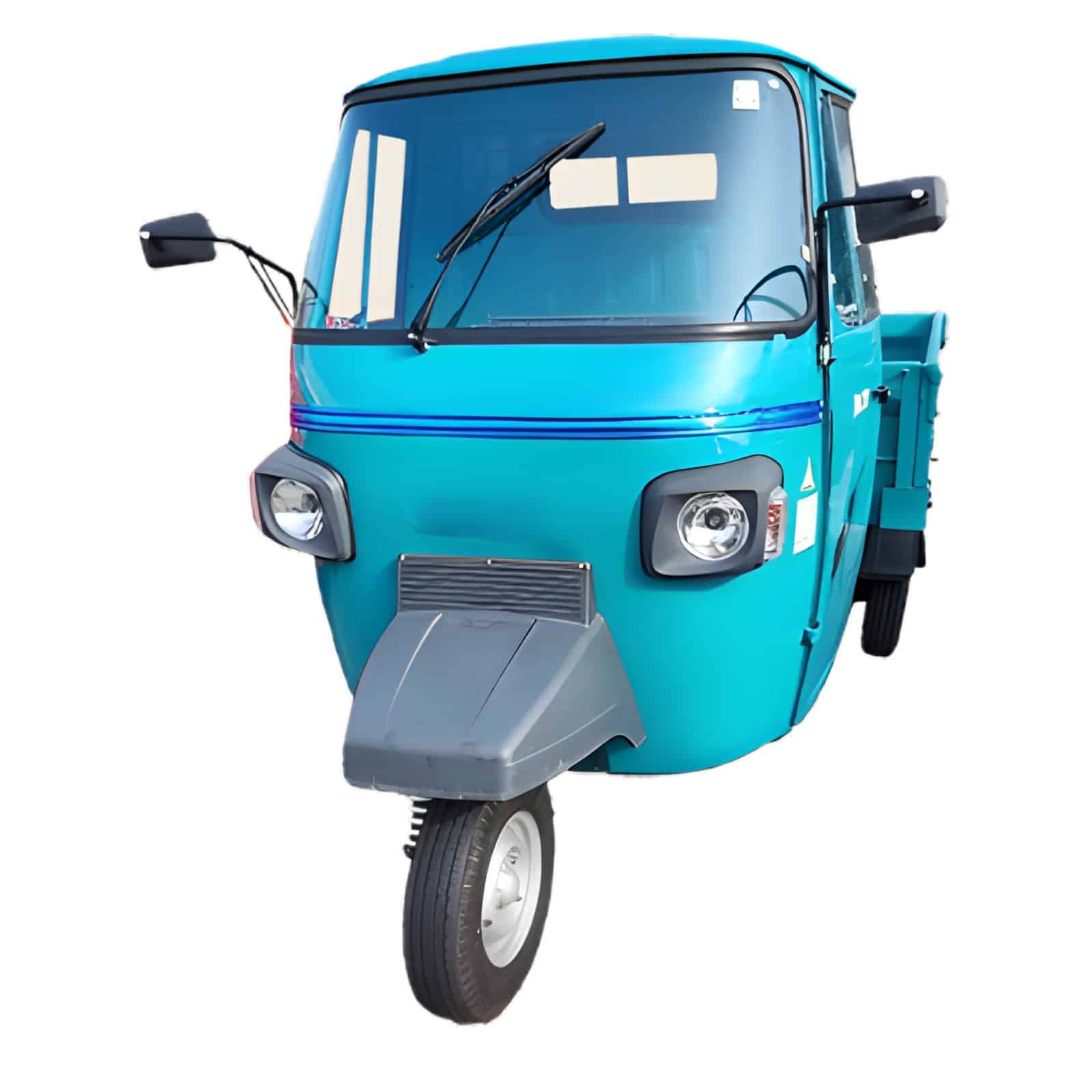

Diesel-Victory Plus Loader

[dnxte_multi_heading text_one=”Diesel – Victory Plus Loader” display_type_select=”on” _builder_version=”4.22.2″ _module_preset=”default” text_one_font=”Open Sans|700|||||||” text_one_text_align=”left” text_one_text_color=”#FFFFFF” text_one_font_size=”40px” text_two_font=”||||||||” text_two_text_align=”center” text_two_text_color=”#eea600″ text_two_font_size=”16px” custom_margin=”-5px||-20px||false|false” custom_margin_tablet=”-5px||-20px||false|false” custom_margin_phone=”-16px||-20px||false|false” custom_margin_last_edited=”on|phone” animation_style=”flip” animation_direction=”bottom” text_one_font_size_tablet=”” text_one_font_size_phone=”22px” text_one_font_size_last_edited=”on|phone” locked=”off” global_colors_info=”{}”][/dnxte_multi_heading]

Diesel – Victory Plus Loader

[dnxte_coverflowslider_parent dnxte_coverflow_keyboard_enable=”off” dnxte_coverflow_mousewheel_enable=”off” dnxte_coverflow_pagination_type=”none” dnxte_coverflow_breakpoint_desktop=”1″ disabled_on=”on|on|on” _builder_version=”4.22.2″ _module_preset=”default” disabled=”on” global_colors_info=”{}”][dnxte_coverflowslider_child coverflowslider_image=”https://www.bharathiauto.com/wp-content/uploads/2024/02/passenger-auto-petrol-maxima-image-3.png” _builder_version=”4.22.2″ _module_preset=”default” border_width_all=”1px” border_color_all=”#1e1a17″ global_colors_info=”{}”][/dnxte_coverflowslider_child][dnxte_coverflowslider_child coverflowslider_image=”https://www.bharathiauto.com/wp-content/uploads/2024/02/passenger-auto-petrol-maxima-image-4.png” _builder_version=”4.22.2″ _module_preset=”default” border_width_all=”1px” border_color_all=”#1e1a17″ global_colors_info=”{}”][/dnxte_coverflowslider_child][dnxte_coverflowslider_child coverflowslider_image=”https://www.bharathiauto.com/wp-content/uploads/2024/02/passenger-auto-petrol-maxima-image-5.png” _builder_version=”4.22.2″ _module_preset=”default” border_width_all=”1px” border_color_all=”#1e1a17″ global_colors_info=”{}”][/dnxte_coverflowslider_child][/dnxte_coverflowslider_parent]

SPECIFICATIONS:

Emission Standards	BS-VI
Loading Capacity	Offset Steering: 378 Kg \| Handlebar: 450 Kg
Brakes	Drum
Suspension	Front: Coil Spring; Rear: Leaf Spring
Driving Mode	Front: Coil Spring; Rear: Leaf Spring
Battery	Lead Acid 12 V
Starting System	Electric Push Button
Fuel Used	Diesel
Average	25 Kmpl
Fuel Tank Capacity	10.25 Ltr.
Engine Type	e-Di 599 WD
Bore	91.3
Stroke	91.3
Cubic Capacity	597.7
Max Output	7.0 Kw
Max RPM	3850 RPM
Max Speed	52 Kmph
Gear Box	Constant Mesh
Clutch	Wet Multiplate
Kerb Weight	477 Kg
Gross Vehicle Weight	995 Kg
Min. Ground Clearness	135 mm
Wheel base	Offset Steering: 2060 mm \| Handlebar: 2034 mm
Rear Wheel Track	1250 mm
Overall Length	Offset Steering: 3139 mm \| Handlebar: 3125 mm
Overall Width	Offset Steering: 1491 mm \| Handlebar: 1470 mm
Overall Height	Offset Steering: 1491 mm \| Handlebar: 1470 mm
